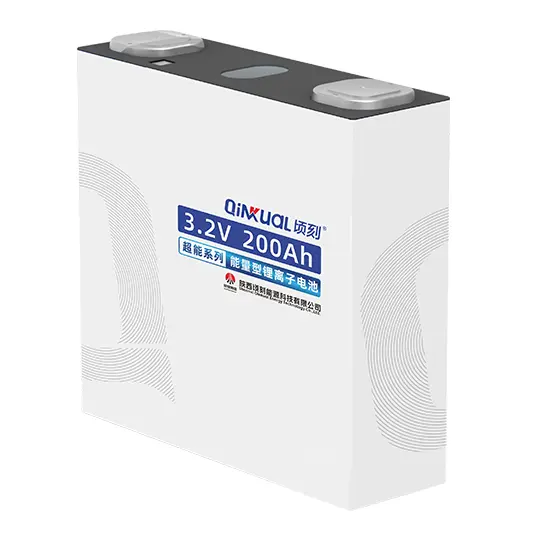

Our 200Ah 1C/2C prismatic cell offers 4500+ cycles, 6C discharge capability, and enhanced safety with no burning or explosion risk.
| Specification | QPF200CA |
| Rated Capacity | 200Ah@1C |
| Nominal Voltage | 3.2V |
| ACR | 0.17±0.05mΩ |
| Cell Weight | （4250±60）g |
| Operating Temperature | -20~60℃ |
| Maximum Continuous | 2C |
| Discharge Current | |
| Maximum Pulse Discharge Current @50%SoC | 3C@30s |
| Maximum Continuous Charge Current | 1C |
| Maximum Pulse Charge Current | 2C@30s |
| @50%SoC | |
| Energy Density | 151Wh/kg |
| Cycle Life | 4500 |
| Cycle Life @ | 4500@(1C/1C) |
| High Rate Working Condition | 1500@(1C/2C) |
| (Charge/Discharge) | 450@(1C/3C) |
| Typical Dimension | 54*173*207mm |
6C discharge with 100Ah capacity
4500+ long cycle life in 1C/1C
No burning or explosion risk
1. 1P discharge and support 4 times of overload current, capable of during the grid fluctuation rapidly
2. With up to 2C discharge rate and over 3,000 cycles, this prismatic cell 200Ah offers unmatched longevity for grid storage.
3. LiFePO₄ chemistry ensures thermal and chemical stability, plus non-combustible safety features, perfect for large-scale and industrial installations.
4. Compact prismatic format allows for efficient stacking and modular design in battery sections requiring scalable capacity.
1. Commercial & utility-scale solar or wind energy storage
2. Electric vehicle packs, including buses and commercial fleets
3. UPS systems for data centers and mission-critical infrastructure
4. Marine and RV renewable backup systems
6. Off-grid and remote power installations
Equip your system with a reliable, scalable power source — the 3.2 V 200Ah lithium iron phosphate rechargeable prismatic cell delivers consistent energy, safe operation, and long-term performance.
