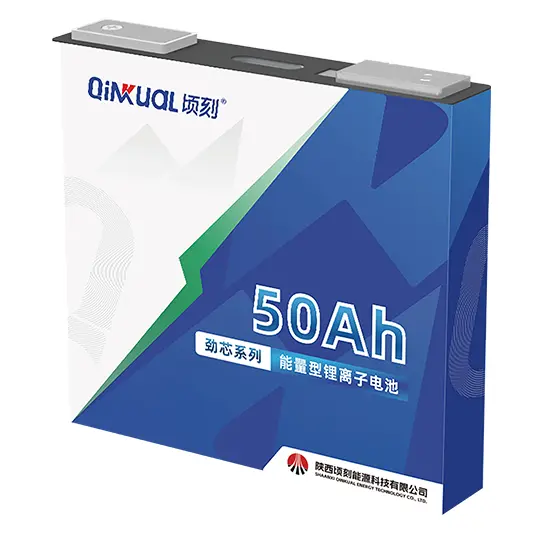

Our 50Ah 3C/6C prismatic cell: high performance, 4000 cycles, minimal temperature rise, and safe integration for versatile applications.
| Specification | QPF50CA | QPF50CC Upgraded |
| Rated Capacity | 50Ah@1C | 50Ah@1C |
| Nominal Voltage | 3.2V | 3.2V |
| ACR | ≤0.7mΩ | ≤0.5mΩ |
| Cell Weight | (1100±20)g | (1135±20)g |
| Operating Temperature | -20~60℃ | -20~60℃ |
| Maximum Continuous | 2C | 6C |
| Discharge Current | ||
| Maximum Pulse Discharge Current @50%SoC | 5C@30s | 8C@30s |
| Maximum Continuous Charge Current | 1.5C | 3C |
| Maximum Pulse Charge Current | 2C@30s | 5C@30s |
| @50%SoC | ||
| Energy Density | 144Wh/kg | 144Wh/kg |
| Cycle Life | 3000 | 4000 |
| Cycle Life @ | 2000@(1.5C/2C) | 1000@(3C/6C) |
| High Rate Working Condition | ||
| (Charge/Discharge) | ||
| Typical Dimension | 27*148*134mm | 27*148*134mm |
<20℃ temperature rise in 5C continuous discharge
2000+ cycles in 6C/6C charge/discharge
Flexibly integrate in VDA size
No burning or explosion risk
1. High Output & Efficiency: Sustains up to 6C continuous discharge (300 A) with less than 20 °C temperature rise even under high load.
2. Proven Durability: Delivers approximately 4,000 cycles at 1.5C/2C and over 1,000 cycles at the full 3C discharge & 6C charge rate.
3. Effortless Integration: Prismatic casing within VDA dimensions simplifies mechanical design and pack assembly.
4. Inherent Safety: LiFePO₄ chemistry provides thermal stability, negligible thermal runaway risk, and safe charge/discharge operation.
5. Thermal Management: Minimal heat generation at high currents reduces the need for aggressive cooling solutions.
